TLS

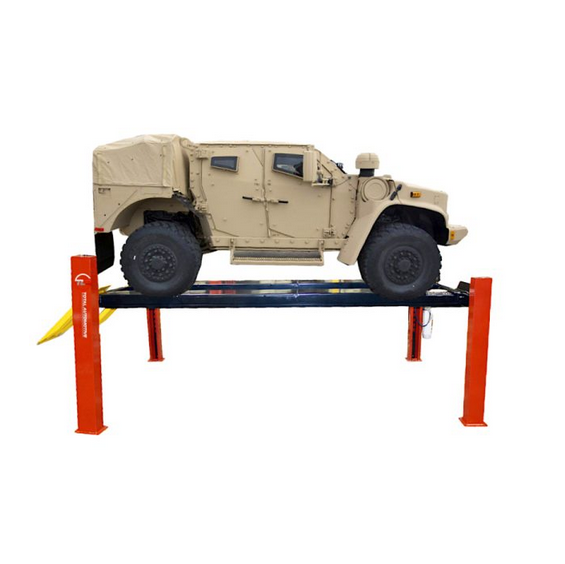

VÉRIN D'ALIGNEMENT FERMÉ AVANT "FLAT DECK" 4 COLONNES TLS - CAPACITÉ 19 000 LBS. - CERTIFIÉ ALI
VÉRIN D'ALIGNEMENT FERMÉ AVANT "FLAT DECK" 4 COLONNES TLS - CAPACITÉ 19 000 LBS. - CERTIFIÉ ALI
SKU:TLS419ALCRx1
Vérin d'alignement 4 colonnes avant fermé, capacité de 19 000 LBS. Disponible en rouge ou en bleu et en version "EXTENDED".
| Capacity | 19,000 lbs / 8.6T |
| Overall Length Extended Model | 301 1/2" / 7659mm |
| Overall Length Standard Model | 274 1/2" / 6972 mm |
| Deck Length Extended Model | 238” / 6045mm |
| Deck Length Standard Model | 211” / 5359mm |
| Overall Width | 150” / 3810mm |
| Deck Width | 23” / 584mm |
| Lowered Height | 10” / 254mm |
| Raised Height | 74” / 1880mm |
| Min. 4 Wheel Align. WB | 84” / 2134mm |
| Max.4 Wheel Align. WB | 164 1/2” / 4178mm |
| Max. 2 Wheel Align. WB | 209” or 182” / 5309mm or 4623mm |
| Max. Service WB | 220” or 193” / 5588mm o 4602mm |
| Lift Time | 70 seconds |
| Power Requirement | 230V - 60Hz - 1 Ph - 20amp |
Télécharger la brochure
