TLS

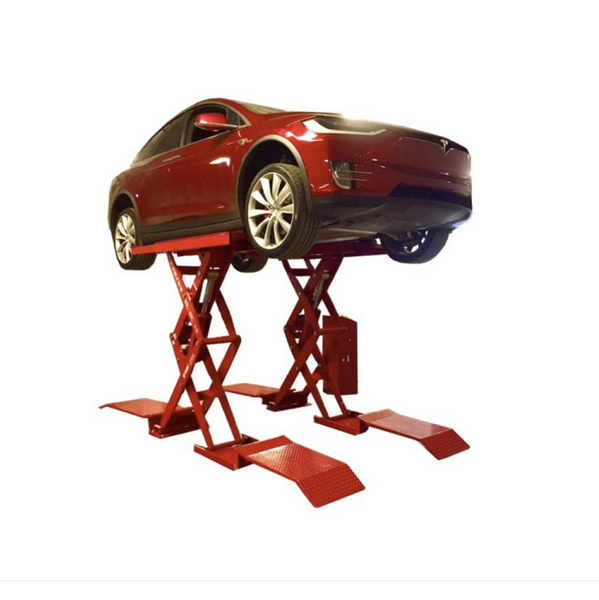

VÉRIN DE SERVICE CISEAUX TLS (MONTAGE EN SURFACE / ENCASTRÉ) - CAPACITÉ 10 000 LBS. - CERTIFIÉ ALI/ETL
VÉRIN DE SERVICE CISEAUX TLS (MONTAGE EN SURFACE / ENCASTRÉ) - CAPACITÉ 10 000 LBS. - CERTIFIÉ ALI/ETL
SKU:TLSS10FDORx1
Vérin de service ciseau capacité 10 000 livre. Disponible en rouge ou en bleu. Option encastrée et montage en surface.
| Capacity | 10,000 lbs. / 4.5T |
| Overall Length - Surface Mount | 160” / 4064mm |
| Overall Length - Flush Mount | 60”/ 1524mm |
| Overall Width | 81.9” / 2080mm |
| Width Between Runways | 27” to 40” / 686mm to 1016mm |
| Deck Width | 23.8” / 605mm |
| Lowered Height | 8.3” / 211mm |
| Raised Height | 79.5” / 2019mm |
| Lifting Time | 45 seconds |
| Power Requirements | 230 Volts - 60 Hz - 1 PH - 20amp |
| Shipping Weight | 2,850 lbs. / 1.3T |
Télécharger la brochure
