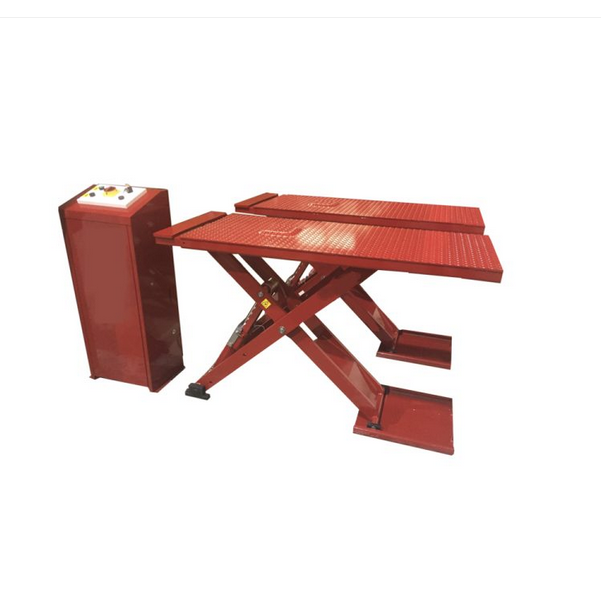

VÉRIN DE SERVICE CISEAUX TLS (MONTAGE EN SURFACE/ENCASTRÉ) - CAPACITÉ 6 600 LBS
VÉRIN DE SERVICE CISEAUX TLS (MONTAGE EN SURFACE/ENCASTRÉ) - CAPACITÉ 6 600 LBS
SKU:TLSS6LPR1
| Capacity | 6,600 lb. / 3.0Kg |
| Power Supply | 220V 12 Amp 2HP/ 1.5 kw |
| Hydraulic Cylinders | 2 - 3” x 15” long / 76mm x 381mm long |
| Lifting Time | 25 Seconds (220v) |
| Overall Width | 78-3/4” / 2000mm |
| Overall Length | 86-1/2” / 2200mm |
| Drive Over Height | 4-1/8” / 105mm |
| Overall Lifting Height | 39-3/8” / 1000mm (42” / 1066mm with adapters) |
| # of Mechanical Locks | 5 |
| Lock Release | Air cylinder lock release |
| Finish Coating | Double bake powder coat - red |
| Height Adapters | 4” / 101mm Rubber covered blocks |
| Lifting Pad Dimensions | 61” to 82-1/2” Extended x 23-1/2” wide / 1550 to 2100mm Extended x 597mm wide |
| Equalization | Volumetric |
| Available In Flush Mount | Yes |
| Pull Out Deck Extension | Yes |
| Arm Reach Side To Side | N/A |
| Optional Light Truck Frame Adapter | Yes |
| Shipping Weight | 850 lb. / 350kg |
| Lubrication | Accessible “zirk” grease fittings at hinge points |
| Approvals UL/CSA/CE | Yes |
Télécharger la brochure
